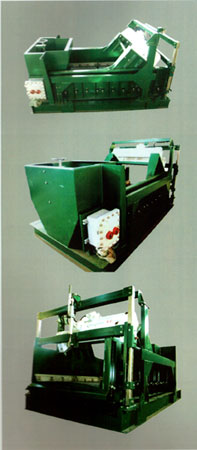

FZS225 Linear Shale Shaker Technical parameters of FZS225 Linear Shale Shaker
Model
FZS2225
1
Movement track
Straight Line
2
Motor model
YBZ30-4W/VLB30154-W
3
Exciting force
30Knx2
4
Frequency
23.5Hz
5
Motor power
1.5Wx2
6
Vibration amplitude
6.0mm
7
Throwing index
6.7g
8
Area of screen box
2.25m2
9
Specification and quantity of screen mesh
1050x685mmx3
10
Screen mesh number
60-200 mesh
11
Adjustable angle of screen box
-1o-5o
12
Handling capacity
50-60I/s
13
Weight
2120Kg
14
Overall dimension
2755x1837x1395mm
FZS320 Linear Shale shaker
